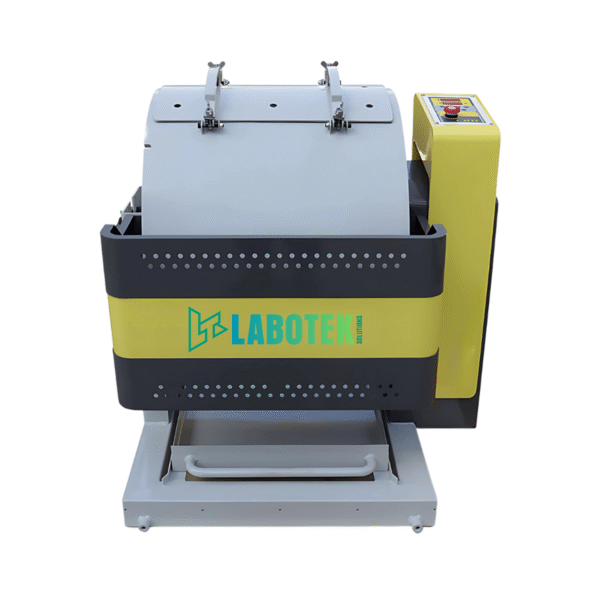

Los Angeles Abrasion Machine NABM-100

Description

Overview

Los Angeles Abrasion Machine NABM-100 rotates at a controlled speed between 31 and 33 rpm to ensure consistent results. It features a steel tray that allows for the convenient unloading of the tested specimen. This unit comprises a rolled steel drum with a 12 mm wall thickness for durability. It comes with a digital counter to track and monitor revolutions accurately. Our machine has a powder-sprayed surface for corrosion resistance and a clean finish.

Specifications:

Rotating speed	31 to 33 rpm
Abrasive charges	Set of 12 abrasive charges: 1.13/16” (7 pcs) and 1.7/8” (5 pcs)
Abrasive charges (options)	Set of 12 abrasive charges: 1.7/8” (EN)
Power consumption	750W
Power supply	AC220V, 50Hz/60Hz
Internal dimension	710×510mm(±5mm)
External dimension	942×959×948mm
Weight	340 kg

Features:

> Noise-reduction cover
> Stable base frame
> Efficient power usage
> Smooth internal finish
> Low-maintenance design
> User-friendly interface

Applications:

Los Angeles Abrasion Machine NABM-100 is used to determine the abrasion resistance and durability of aggregates by simulating wear due to traffic and handling. It is commonly used in civil engineering laboratories, construction material testing facilities, and road quality control units.

Standard Accessories:

Abrasive Charges (1.7/8”) (12 set)

Steel Tray for Specimen Unloading (1 pc)

Protective Cover (1 pc)

Optional Accessories:

Abrasive Charges (1.7/8” (5 pcs), 1.13/16″ (7 pcs) (12 sets)

Noise Reduction and Safety Cabinet (110 kg) (1 pc
