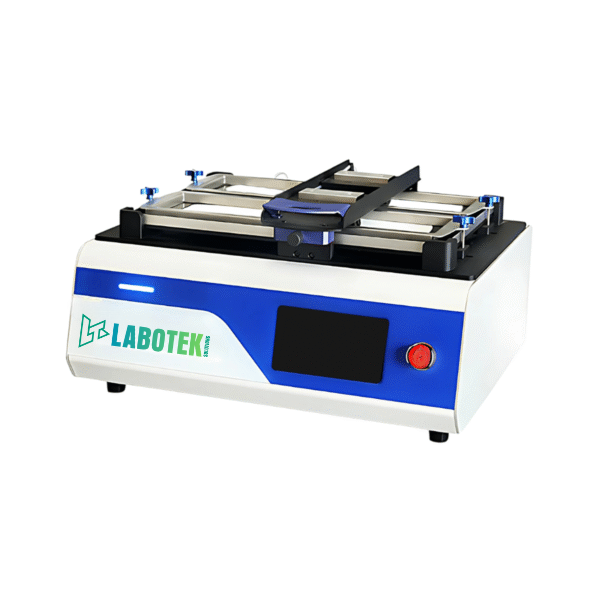

Wet Abrasion Scrub Machine

Description

Overview

Wet Abrasion Scrub Machine NWASM-100 features a brush weight of 454 ± 10 g, 135 ± 1 g and a stroke length of 300 mm. It offers an adjustable running speed to meet different testing standards. This abrasion machine is equipped with a five-digit counter for automatic stopping at preset times. It has dual brush holders for simultaneous side-by-side testing. Our unit includes a peristaltic pump to accurately control the flow of the scrub medium.

Specifications:

Water Container	1 L
Brush	Nylon bristles, 5/4 pattern, 19 mm length
Brush Weight	454 ± 10 g, 135 ± 1 g
Stroke Length	300 mm
Travel Frequency	10 to 99 times/min (adjustable)
Count Range	0 to 99,999 times
Power Consumption	25 W
Power Supply	110 to 220 V, 50/60 Hz
Test Plate Size	430 × 150 × 0.03 mm
Dimensions (L×W×H)	590 × 578 × 320 mm
Weight	27 kg

Features:

> Anodized aluminum body
> Push-rod mechanism
> Durable construction
> Easy sample handling
> Stable running speed

Applications:

Wet Abrasion Scrub Machine NWASM-100 is used to test the abrasion resistance of coatings, evaluate washability, determine stain resistance, and assess detergent performance and durability of painted and coated surfaces.
